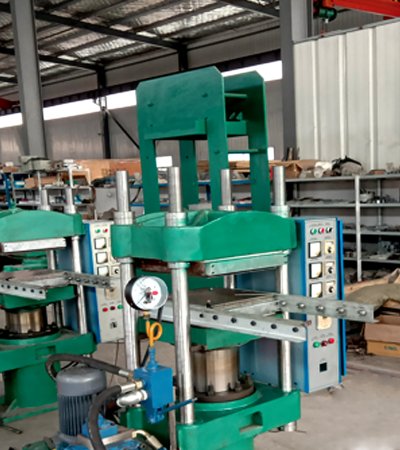

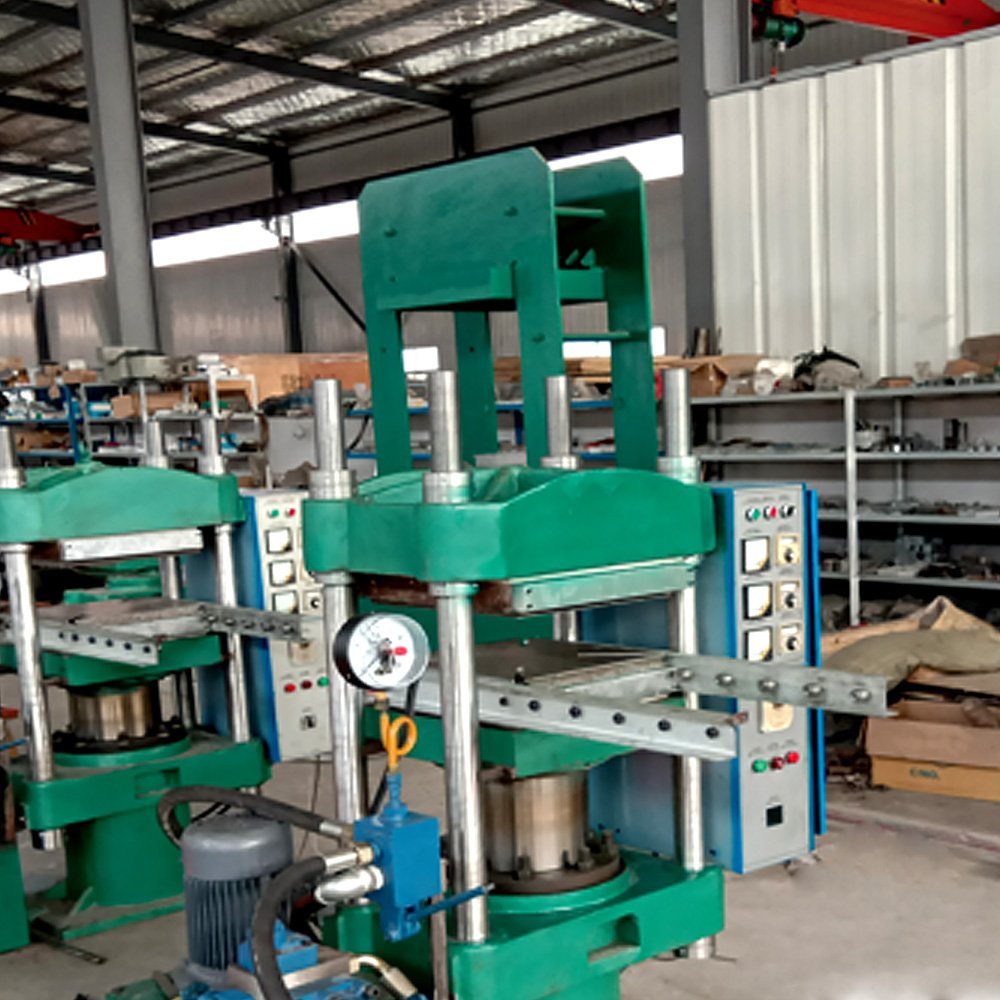

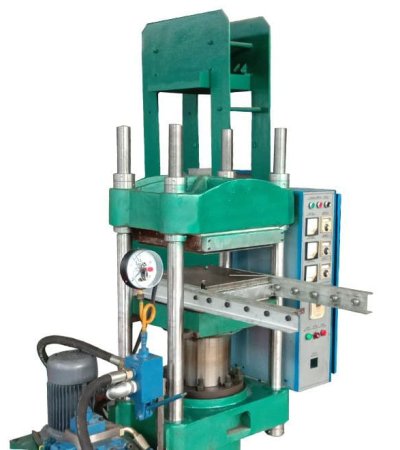

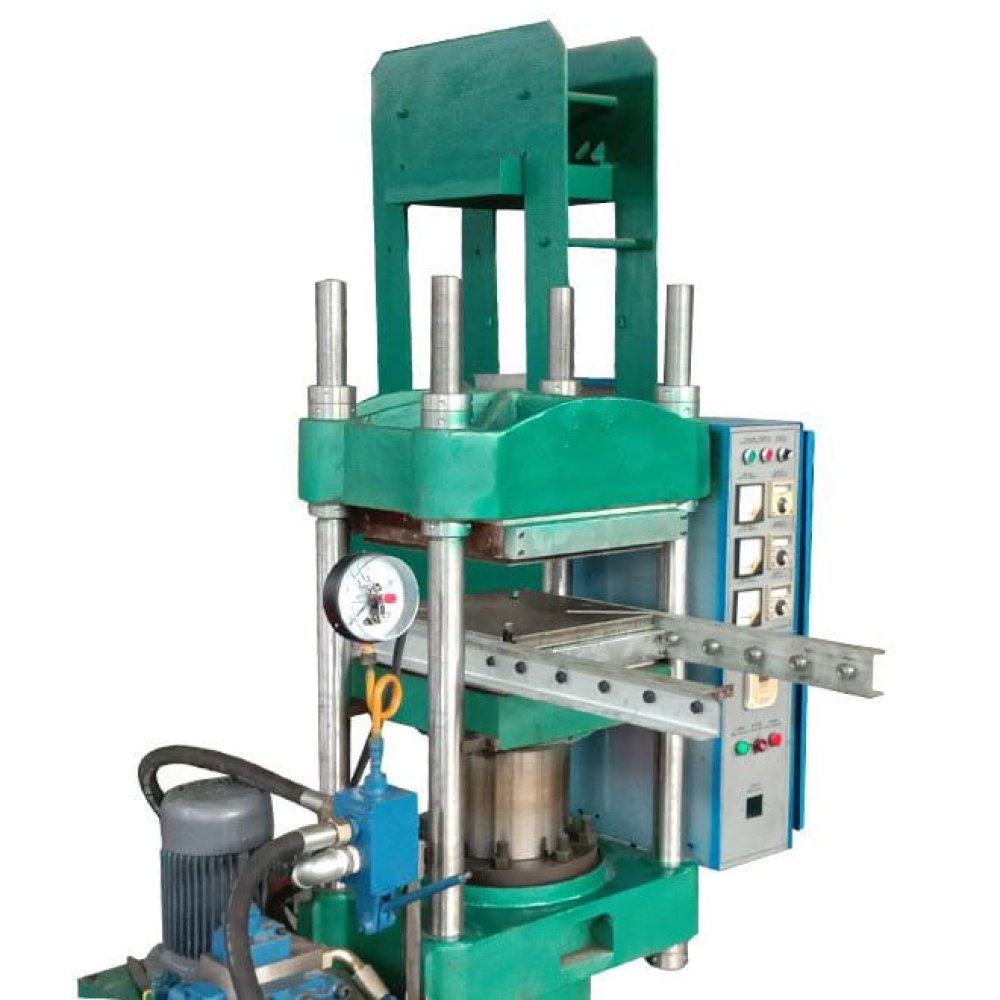

Four-column Flat Vulcanizing Press

Equipment Applications

This Four-column Flat Vulcanizing Press is the main equipment used for pressing and molding various rubber molded products and waste rubber molded products. It can also be used for pressing various thermosetting plastics and foamed rubber and plastic products. It has an independent power structure and electrical system, and adopts centralized button control. The working pressure and heating temperature can be adjusted within a certain range.

(0) Reviews

Product Details

Main technical parameters

Type	XLB-DQ(C) 300×300×2	XLB-DQ(C) 400×400×2	XLB-DQ(C) 600×600×2	XLB-DQ(C) 1000×1000×2
Max Mold Closing Force(MN)	0.25	0.50	1.0	4.0
Hot Plate Size(mm)	300×300	400×400	600×600	1000×1000
Upper and Lower Hot Plate Spacing(mm)	125	125	125	125
Working Layer Number	2	2	2	2(4)
Plunger Stroke(mm)	250	250	250	250(500)
Unit Area Pressure of Hot Plate(MPa)	2.1	3.1	3.8	4.0
Motor Power(kW)	2.2	2.2	3	5
Weight(kg)	1050	1300	3500	11000
