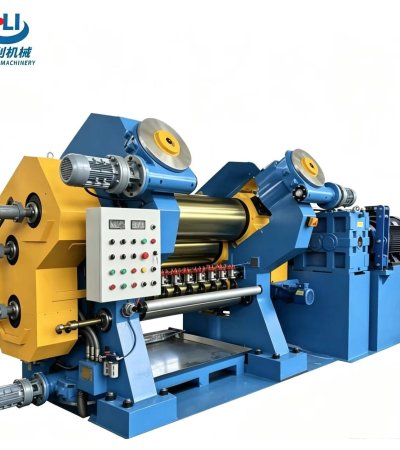

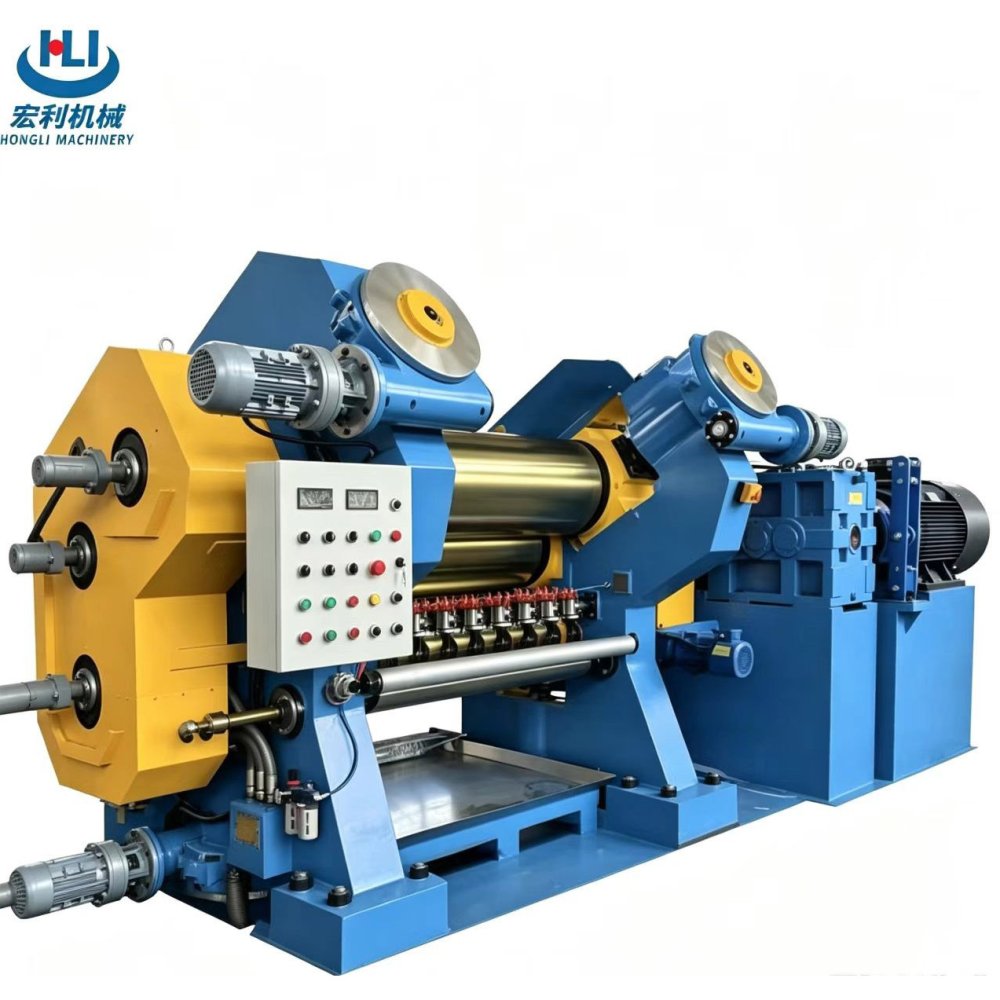

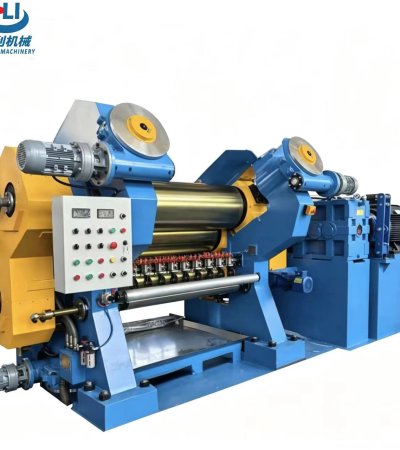

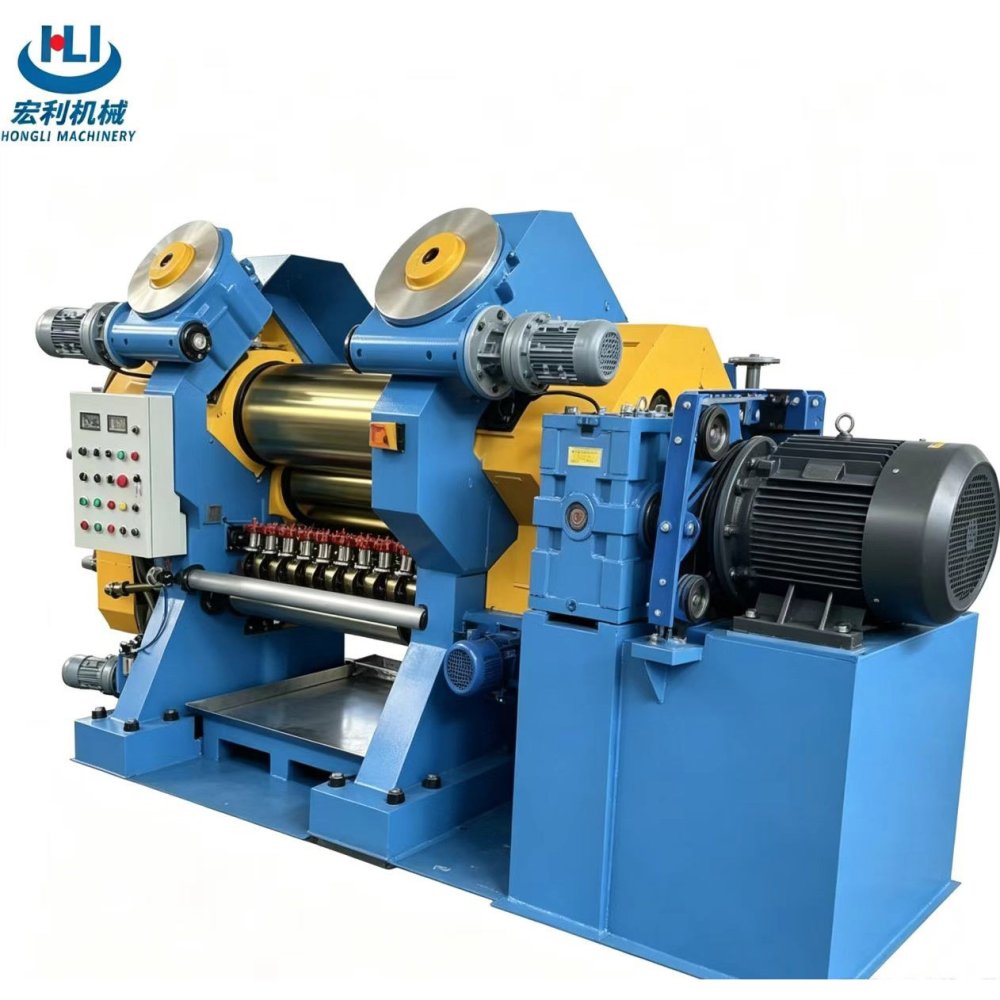

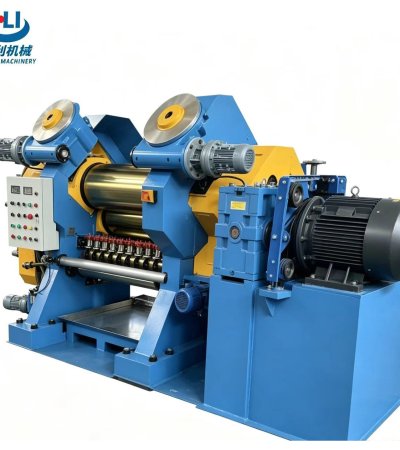

Rubber Three‑Roll Calender Machine

Working Conditions

Operating environment: Altitude＜1000m, ambient temperature 5‑40℃, max. relative humidity 95%, Power supply AC380/220V, 50Hz, Cooling water: temperature 25±5℃, pressure 0.3‑0.4MPa, Compressed air pressure 0.6‑0.8MPa, Working steam pressure 0.3MPa

General Structure Requirements

Welded & annealed machine frame and base with precision machining, Hollow smooth roller made of chilled alloy cast iron LTG‑H, hardness 68‑72HSD, chilled layer depth 15‑20mm, Rolling‑type main bearing, Electric roll‑gap adjusting device, adjusting speed 3.8mm/min, adjusting motor power 0.37KW, Manual rubber baffle with 500‑800mm travel, Disc cutter device, Thin‑oil lubrication unit, oil pump flow 8L/min, pump motor power 0.25KW

Electrical Control Performance

Main motor driven by vector inverter, 150% overload for 60s, 180% overload for 3s, Lubrication interlock protection: main machine cannot run without lubrication pump, Sealed electrical cabinet, Local operation box equipped with start/stop, inching, emergency‑stop and speed display, Hydraulic brake for rapid emergency shutdown, All low‑voltage components with 3C certification.

Supply Scope

Machine frame, base, 3‑piece roller group, 4 sets roll gap adjuster, reducer, main motor, couplings, temperature‑control pipeline, thin‑oil lubrication device, electrical control system. Cables inside operation box & cabinet and pipelines within rotary joints are supplied by Seller, other cables and pipelines shall be supplied by Buyer.

Main Component Suppliers

Inverter‑duty motor: Hengdian / Shanchuan, Inverter: Oury, Reducer: Guomao, Main bearing: Wafangdian, Roller: Dalian, Rotary joint: Taihe, PLC: Siemens / Mitsubishi, Low‑voltage components: CHINT / DELIXI

Safety Protection

Emergency‑stop & lubrication interlock protection equipped, hydraulic emergency brake, no manual intervention in moving zone, maintenance clearance reserved around machine
