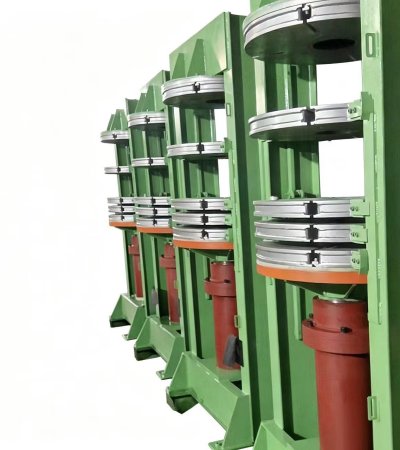

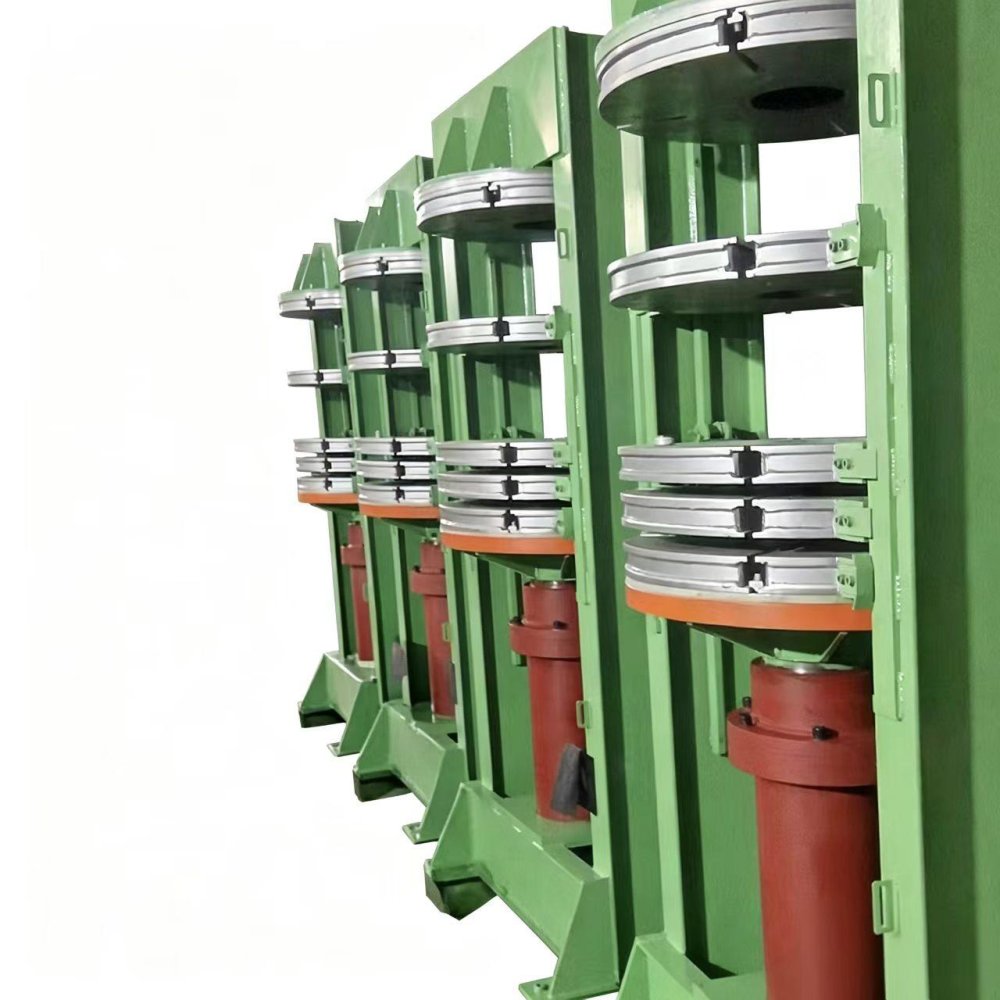

Five-Plate Four-Layer Tire Curing Press

The Five-Plate Four-Layer Tire Curing Press is used for the vulcanization process of tires. It provides vulcanization pressure through a hydraulic system and controls the temperature and pressure to cause the tire blank to undergo a cross-linking reaction, ultimately becoming a finished tire with usable performance.

(0) Reviews

Product Details

Main technical parameters

Type	YLL-600	YLL-1000
Working Layer Number	4	4
Hot Plate Max Diameter(mm)	800	850
Total Pressure(kN)	600	900
Plunger Diameter(mm)	200	250
Steam Pressure of Hot Plate(MPa)	0.6-0.8	0.6-0.8
Electric Control System	PLC	PLC
