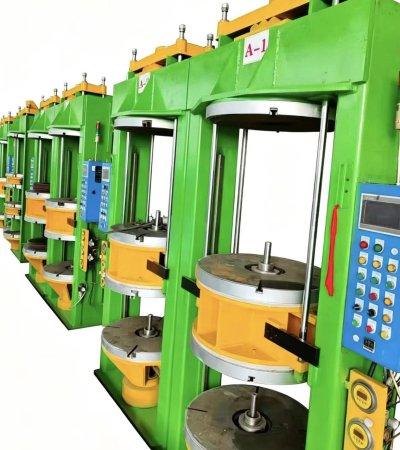

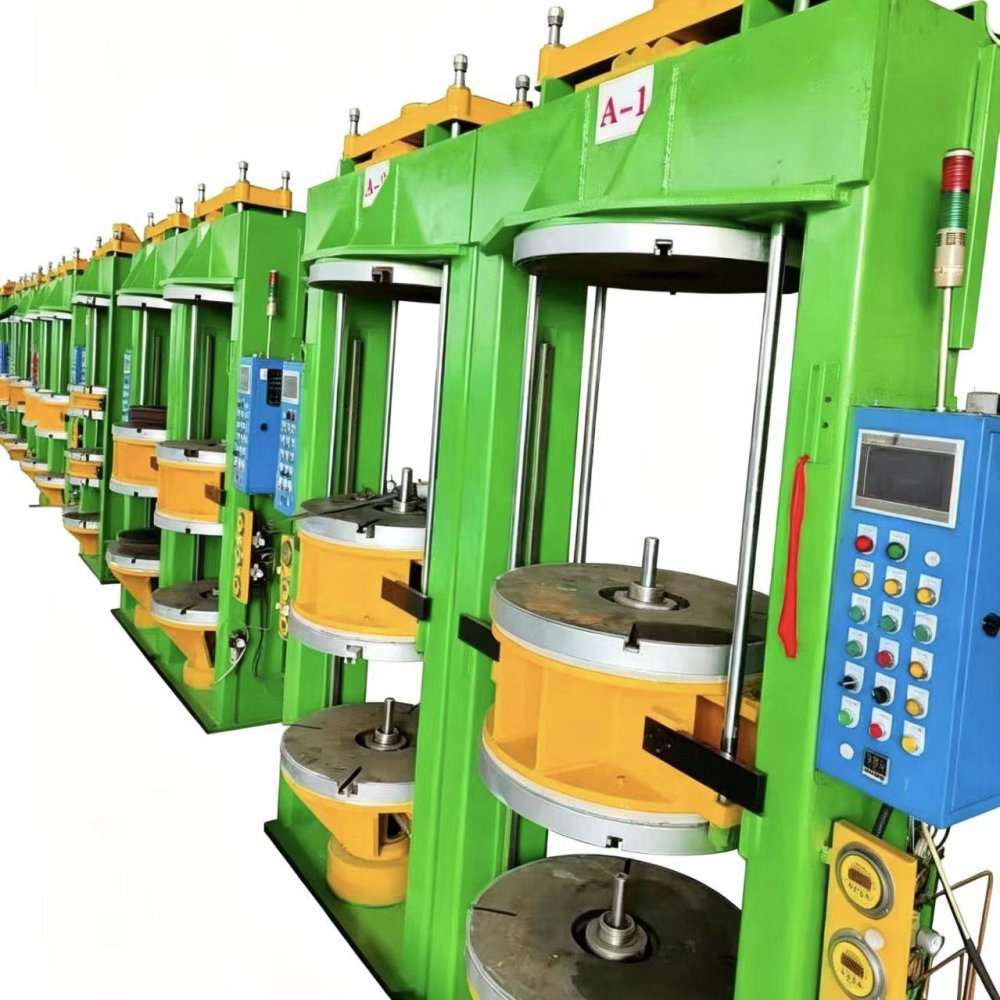

Tire Bladder Vulcanizing Press

Max Mold Closing Force(MN)

0.25-0.40

0.60

0.80-0.90

Hot Plate Diameter(mm)(Customizable)

500-650

800

800-840

Upper and Lower Hot Plate Spacing(mm)

300-600

500-600

600-650

Applicable Rim Diameter(inch)

4＂-5＂-6＂-8＂

8＂-16＂

16＂-19＂

Quantity Abrasives(SET)

2

2

1

Diameter of Plunger(mm)

200

200

250

Center rod Diameter(mm)

25-35

32-40

32-40

Center rod Stroke(mm)

200

200

300

Working Pressure(MPa)

0.6-0.8

0.6-0.8

0.6-0.8

Internal Pressure Air Pressure(MPa)

1.8

1.8

1.8

Internal Pressure Steam Pressure(MPa)

0.8-1.5

0.8-1.5

0.8-1.5

Scheduled internal pressure stress(MPa)

0.1-0.2

0.1-0.2

0.1-0.2

Motor power(kW)

7.5

7.5

11

Host overall dimensions(L×W×H)(mm)

1200×900×2300

2400×900×2910

2400×900×2910

Oil station overall dimensions(L×W×H)(mm)

1000×600×1200

1000×600×1200

1000×600×1200

Host weight(kg)

2500

2800

3500
