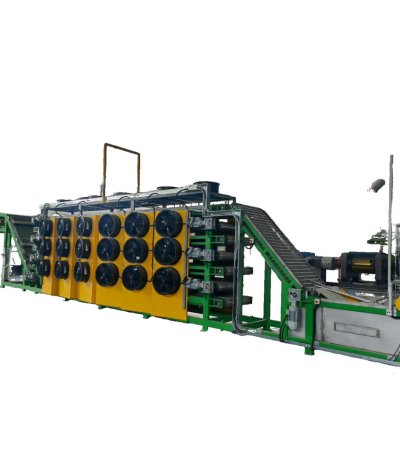

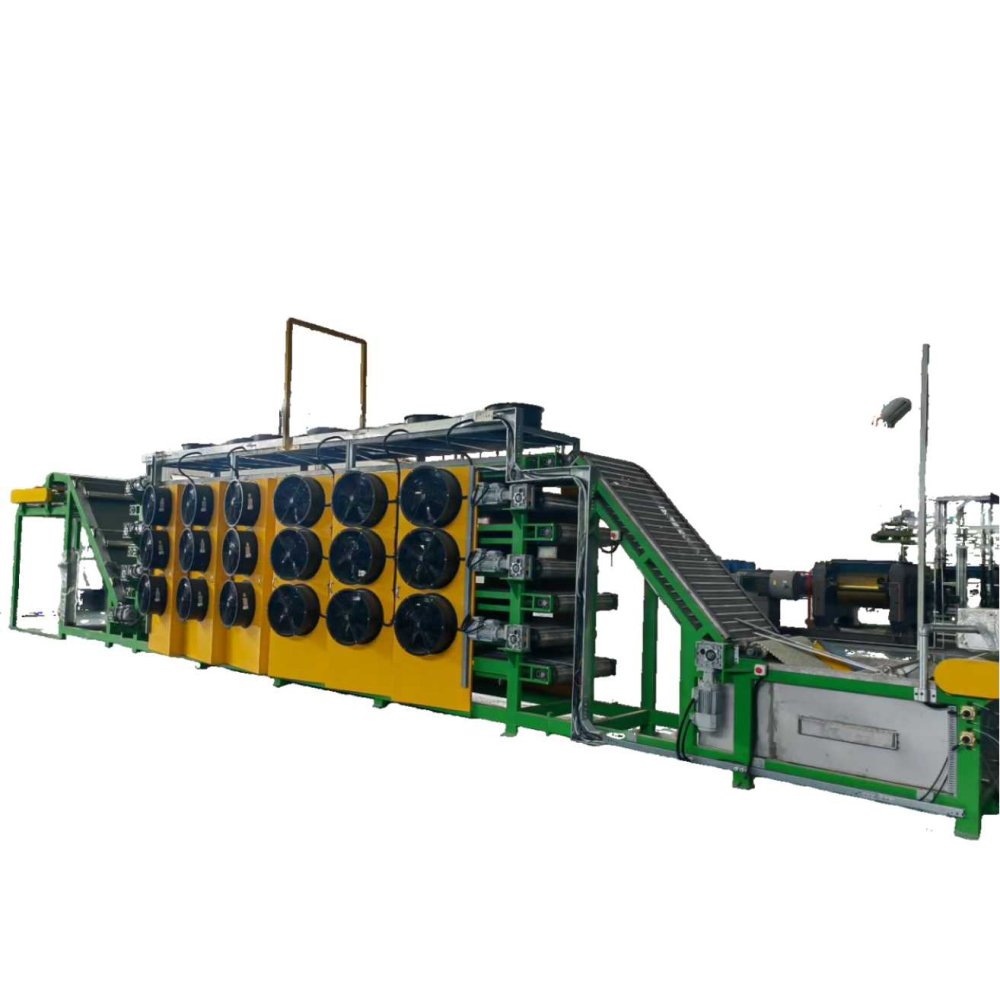

Rubber sheet batch-off cooling line

Name: Rubber Sheet Batch-Off Cooling Line
Brand: Qingdao Hongli Machinery Co., Ltd.
Rating: 5.0 (13 reviews)

Rubber sheet batch-off cooling line

The batch cooling line for rubber sheets can cool and shape compressed films, preventing them from sticking together and allowing them to dissipate heat effectively, facilitating storage and processing.

(0) Reviews

Product Details

Rubber sheet size(mm)（Thickness×width）	(4-12)×900
Power(V/Hz)	380V 50Hz
air pressure(MPa)	0.4-0.8
Conveying speed(m/min)	40
Hang rubber rod movement speed(m/min)	0.117-1.17
Max height of handing(mm)	1400
Axial flow fan motor(kW)	0.37
Swing rubber max amplitude(m)(adjustable)	1.3
Frequency of swing rubber(m/min)	13
Rubber sheet temperature(°)	Field temperature+5
Cooling reducer motor(kW)	1.1
Lift reducer motor(kW)	2.2
Hang rubber rod reducer motor(kW)	5.5
Conveyor belt motor(kW)	3
Swing sheet reducer motor(kW)	1.1
